Facebook Custom Audience

Step-by-step guide to send event data from RudderStack to Facebook Custom Audience.

Facebook Custom Audience is a popular targeting tool that lets you find people on Facebook, who are interested in your business. It lets you create custom audiences through customer lists, Facebook engagement, and website/app traffic.

RudderStack lets you send your customer events for creating custom audiences by leveraging the Facebook Marketing API.

You can now send your customer events data list directly for adding them to already created Facebook Custom Audience through RudderStack.

The user information in your events may include email, phone number, gender, etc. For more information on the supported fields, refer the documentation here.

Find the open-source transformer code for this destination in our GitHub repo.

Getting started

To enable sending your event data to Facebook Custom Audience, you will first need to add it as a destination in RudderStack.Once the destination is configured and enabled, events from RudderStack will start flowing to Custom Audience.

Before configuring Facebook Custom Audience as a destination, verify if the source platform supports sending events to Custom Audience by referring to the table below:

Connection Mode

Web

Mobile

Server

Device mode

Cloud mode

Supported

To know more about the difference between Cloud mode and Device mode in RudderStack, read the RudderStack Connection Modes guide.

Once you have confirmed that the platform supports sending events to Custom Audience, perform the steps below:

From your RudderStack dashboard, add the source. Then, select Facebook Custom Audience from the list of destinations.
Assign a name to the destination and click on Next.

Connection settings

To add Custom Audience as a destination in RudderStack, you will need to configure the following settings:

Facebook Custom Audience Setup

Access Token: Enter the access token of your business application set up for accessing the Facebook Marketing API.

Check the FAQ section for more information on how to find your User Access Token.

Audience ID: This is the custom Audience ID to which the audiences will be added/removed.

Check the FAQ section for more information on how to find your Audience ID.

Schema Fields Choose your schema fields (at least one) from the available options. This is a mandatory field. RudderStack expects the user events to consist of every schema field that has been chosen on the dashboard.

RudderStack will ignore any user information which does not adhere to the schema fields specified in the dashboard settings.

Some other important settings include:

Enable Hashing: Facebook expects the user data to be hash encoded using SHA256. if this option is enabled, RudderStack will hash encode the user data irrespective of the schema type chosen in the RudderStack dashboard.
Is The Data Raw: As RudderStack does not support combinational schema fields, this field will be ignored if not enabled.
Audience Batch Size: Specify the size of data you want RudderStack to send to Facebook in a single event. For example, if you want to send a total 1000 user records to Facebook and set the batch size to 50, then Rudderstack will send 20 events to Facebook with 50 user records in each event.
Disable Formatting: Facebook has fixed data formats for all the allowed schema fields. If this option is enabled, RudderStack will not format the user data before sending it to Custom Audience.
Skip Verify: This option lets Rudderstack handle all the null/undefined user properties before uploading them to Facebook Custom Audience.
- When disabled, RudderStack discards the entire batch of events if any of the user attributes are null, according to the schema fields.
- When this option is enabled along with the Enable Hashing setting, the null values are replaced by an empty string “” , hashed, and then sent to Custom Audience.
- When this option is enabled and the Enable Hashing setting is disabled, Facebook throws an error as it does not take null values.
Type: Specify the type of the custom audience here. This field will be ignored if left as NA.
Sub Type: This is the sub-type of the custom audience. This field will be ignored if left as NA.

`audiencelist` event structure to send user data to Custom Audience

The Facebook Custom Audience destination supports only audiencelist calls.

Note that the custom audience should have edit permissions. Otherwise, RudderStack will not be able to add or remove users from the list.

The add and remove arrays containing the user data objects are expected inside the properties field of the audiencelist event. These arrays are wrapped inside the object listData.

add: This array refers to the user information that needs to be added to Custom Audience.
remove: This array refers to the user information that needs to be deleted from Custom Audience.

Schema fields mapping

The following table details the mapping of the schema fields specified in the RudderStack dashboard and the Facebook Marketing API.

Dashboard Field Name

Marketing API Schema Field (Rudderstack Supported Field Name)

Field Guidelines

EMAIL

Trim any leading or trailing whitespaces and convert all the characters to lower case.

PHONE

Remove symbols, letters, and any leading zeroes. The country code is needed as a prefix, if the COUNTRY field is not specified in the dashboard.

GENDER

GEN

Use these values: m or male for male and f or female for female.

MADID

Use lowercase and keep the hyphens. This information will not be hashed.

EXTERN_ID

This information will not be hashed.

DOB YEAR (YYYY)

DOBY

Use the YYYY format from 1900 to the current year.

DOB MONTH (MM)

DOBM

Use the MM format from 01 to 12.

DOB DATE (DD)

DOBD

Use the DD format from 01 to 31.

LAST NAME

LN

Use a-z only. Lower case only, no punctuation. Use special characters in the UTF-8 format.

FIRST NAME

FN

Use a-z only. Lower case only, no punctuation. Use special characters in the UTF-8 format.

FIRST NAME INITIAL

FI

Use a-z only. Lower case only. Use special characters in the UTF-8 format.

CITY

CT

Use a-z only. Lower case only, with no punctuation, no special characters, and no whitespace.

US STATES

ST

Use the 2-character ANSI abbreviation code in lower case. Normalize the states outside the US in lowercase, with no punctuation, no special characters, and no white space.

ZIP

Use lower case and no white space. For the US, use only the first 5 digits. For the UK, use the Area/District/Sector format.

COUNTRY

Use lower case, 2-letter ISO 3166-1 alpha-2 country codes.

RudderStack modifies the schema names visible in the dashboard to ensure better readability. However, during the event call, the field names must be exactly the same as the schema names specified by Facebook Marketing API, as mentioned in the table above.

Explicit formatting feature

If the Disable Formatting option is enabled in the RudderStack dashboard, RudderStack will not format the user data in the format prescribed by the Facebook Marketing API. If it is disabled, RudderStack formats the schema fields input by the user as shown in the table below:

Schema Field Name

Example Input

Formatted Output (Before Hashing)

EMAIL

ABC@gmail.com

abc@gmail.com

PHONE

0@96346895

96346895

GEN

FEMALE

f

DOBD

2

02

DOBM

1

01

LN & FN

Abc,@

abc@

FI

Mr.

mr.

CT

HN#

hn

ST

? AL ?

al

ZIP

11502 @bc

11502@bc

COUNTRY

IN

in

The following code snippet shows a audiencelist event with the schema fields (e.g.EMAIL,FIRST NAME) specified in the RudderStack dashboard:

{
  "type": "audiencelist",
  "properties": {
    "listData": {
      "add": [{
          "EMAIL": "name1@abc.com",
          "FN": "name1"
        },
        {
          "EMAIL": " 'name2@abc.com",
          "FN": "name2"
        },
        {
          "EMAIL": " 'name3@abc.com",
          "FN": "name3"
        }
      ],
      "remove": [{
          "EMAIL": "'name4@abc.com",
          "FN": "name4"
        },
        {
          "EMAIL": "'name5@abc.com",
          "FN": "name5"
        }
      ]
    }
  }
}

Facebook Custom Audience payload restrictions

Payload Field

Transformed?

Using only add

Yes

Using only remove

Yes

Using both add and remove

Yes

Not using both add and remove

The following code snippet shows a audiencelist event having only add with the schema fields (e.g.EMAIL,FIRST NAME) specified in the RudderStack dashboard:

{
  "type": "audiencelist",
  "properties": {
    "listData": {
      "add": [{
          "EMAIL": 'name1@abc.com',
          "FN": 'name1'
        },
        {
          "EMAIL": 'name2@abc.com',
          "FN": 'name2'
        }
      ]
    }
  }
}

Similarly, you can use remove in order to remove users from a particular custom audience without creating a session.

The event payload must include add or remove . Otherwise, the user data won’t be transformed and sent to Custom Audience.

FAQs

How do I create a new audience list?

Go to the Audiences option in your Facebook Ad Manager account.
Select Customer list as your Custom Audience source and click on Next.

If your list includes a column for customer value, then select the Yes option, else select No and click on Next.

Add the list that you want to use for your new Custom Audience and give it a name. You can upload either a CSV or a text file.
Prepare your customer list by selecting and mapping the identifiers.
Once your list is added and ready for use, click on Upload and Create.

Make sure you have enough identifiers before uploading the list.

The custom audience you create should have edit permissions. Otherwise, RudderStack will not be able to add or remove users from the list.

How do I check if the custom audience has edit permissions?

To check if the audience has edit permissions enabled, go to the Audiences tab, select your custom audience, and check the Actions dropdown. You should see the Edit option as seen below:

Where can I find the Custom Audience ID?

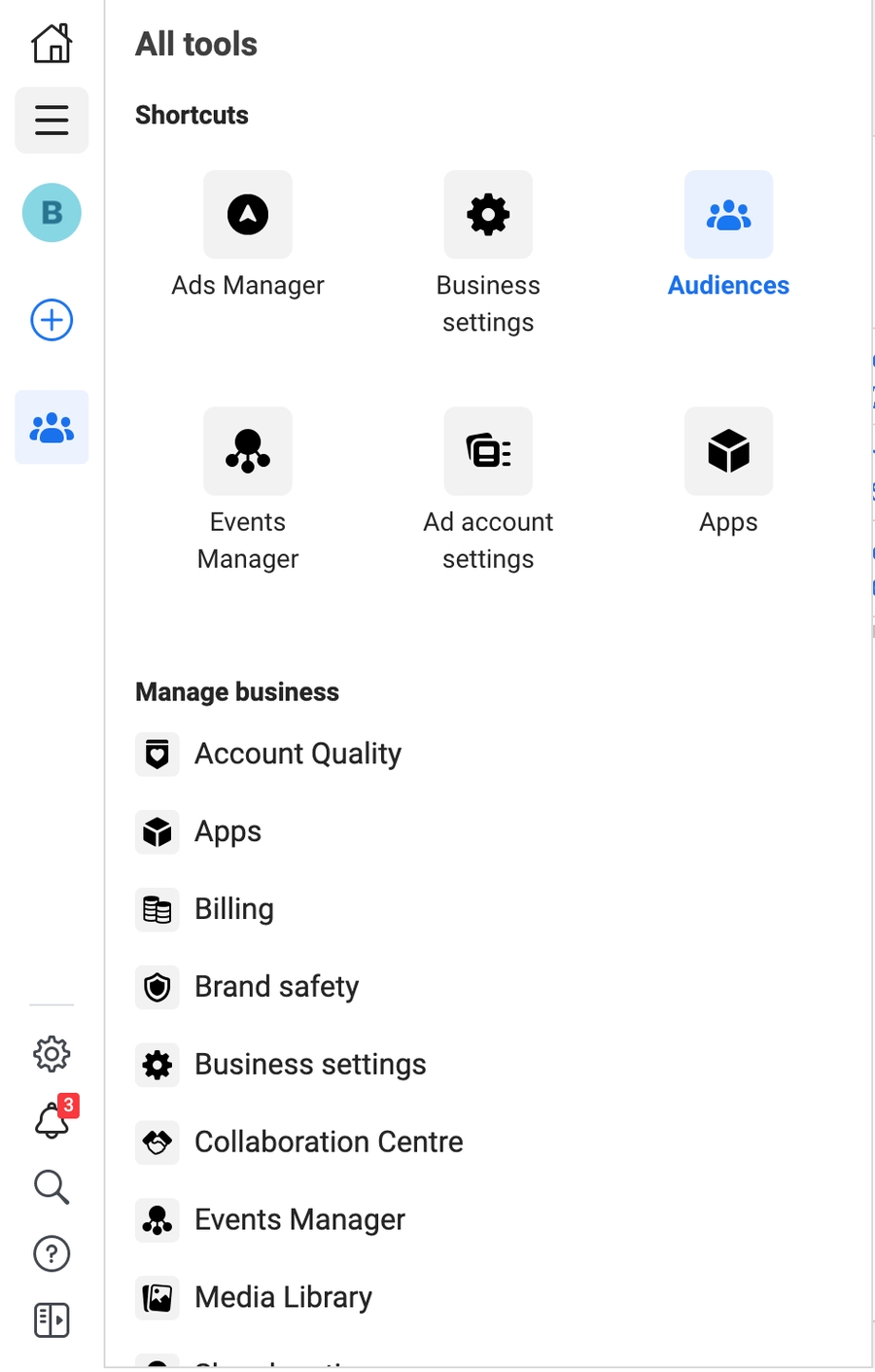

To get your Custom Audience ID, go to your Facebook Ads Manager account. On the left navigation bar, select Audiences and choose the Ad account you have created the custom audience for.

Then, click on All Audience and select the specific custom audience from the list.

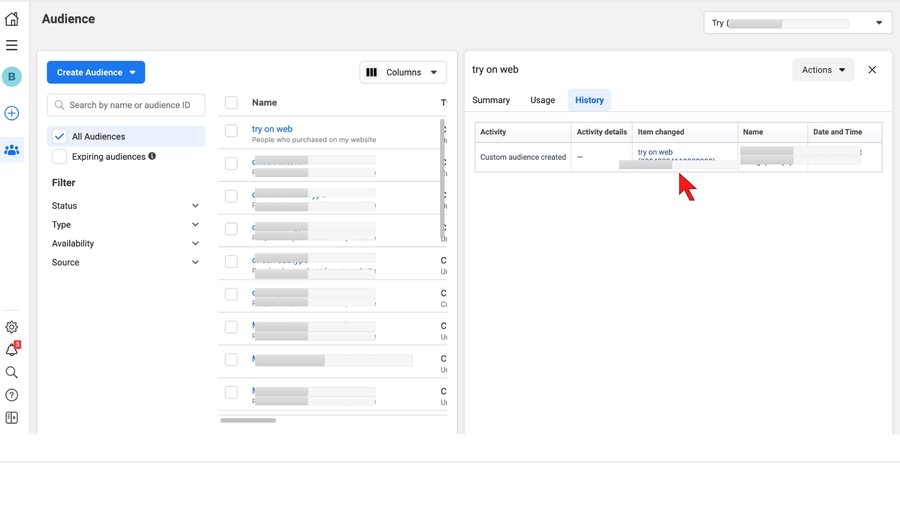

Finally, click on the History tab. Here, you will find the audience ID under the Item Changed column, as shown:

Where can I find the user Access Token for the application?

To use the Facebook Marketing API, you need to generate a user access token. Follow these steps to generate a user access token using your Facebook Developer account:

Log into your Facebook Developer account.

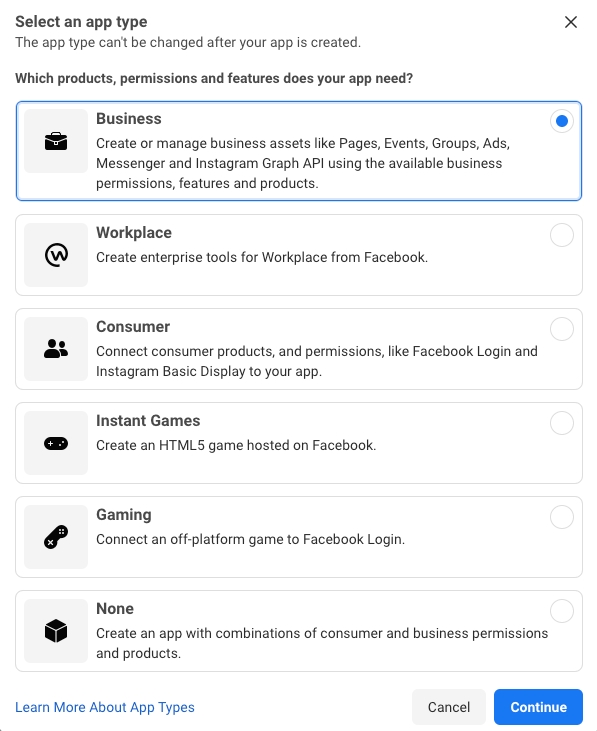

If you haven't created an app already, do so with the type Business, as shown:

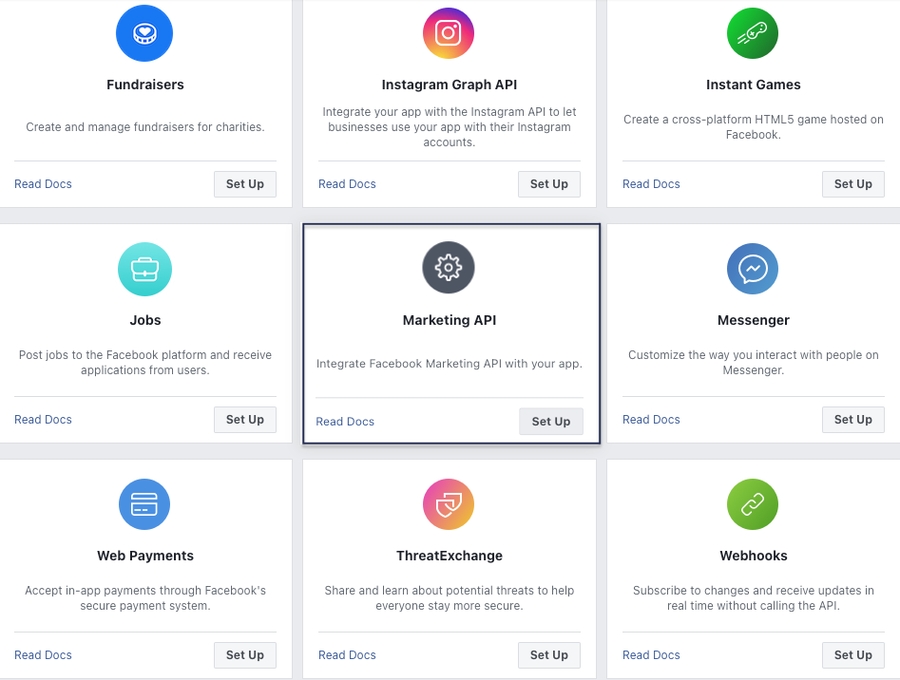

Set your app up with the Marketing API as the product, as shown:

Next, in the left navigation click bar, click on the Tools option under Marketing API , as shown:

Under Get Access Token, select ads_management and ads_read as the token permissions and click on Get Token:

Copy this access token. Note that this access token will expire after a specified time and hence should not be hardcoded into your app.

For more information on using this access token or generating the access token via your app, refer to the Facebook developer documentation.

Should I use `sessionIdAdd` or `sessionIdDelete` before adding/removing users in Custom Audience?

sessionIdAdd and sessionIdDelete helps you track and use a particular session ID while adding or removing users. This is useful when you are sending data in chunks. If you do not include these fields, Facebook creates a session ID itself.

Refer to the Facebook documentation for more information on this.
